Product Description
Specifications
|
Product
|

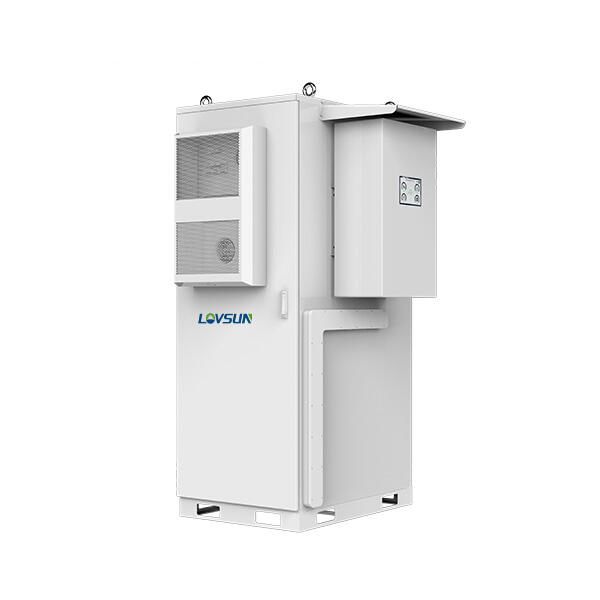

HV100K
|
|
Nominal Voltage
|
358.4V
|
|
Nominal Capacity
|
280AH
|
|
Cabinet Size(mm)
|
1250*1245*2175
|
|
Weight(kg)
|
1260KG
|
|
Charge/discharge power MAX
|
140A
|
|
Cooling method
|
Air-cooled
|
|
Protection class
|
IP55
|
|
Type of firefighting
|
Aerosol
|
|
BATTERY SPECIFICATIONS
|
|
|
Battery Types
|
51.2V-280AH
|
|
Nominal Capacity(KWh)
|
100KWh
|
|
Recommend Charge/Discharge Current (A)
|
100
|
|
Max.Charge/Discharge Current(A)
|
140
|
|
Communicaiton
|
RS485/CAN
|
|
Working Temperature
|
0℃~50℃ Charge-10℃~50℃ Disharge
|
|
Transport or Storage Temperature Range
|
-20℃~60℃
|
|
Certification
|
CE/IEC/UL/UN38.3/MSDS
|
|
Design Life
|
10years+
|
|
Cycle Life
|
(0.5C/0.5C-80%DOD)>6000 times
|
|
Cooling method
|
Air-cooled
|
|
Certification
|
UN38.3/MSDS/ROHS
|
|
AC SPECIFICATIONS
|
|
|
Rating
|
50KW
|
|
Overloaded
|
110%
|
|
Rated AC Voltage
|
400V
|
|
Rated frequency
|
50/60Hz
|
|
Communicaiton
|
Ethernet/Modbus/TCP/IP
|
|
Inverter Type
|
Deye/Solis/Megarevo/Other
|
Certificates
