Components
|

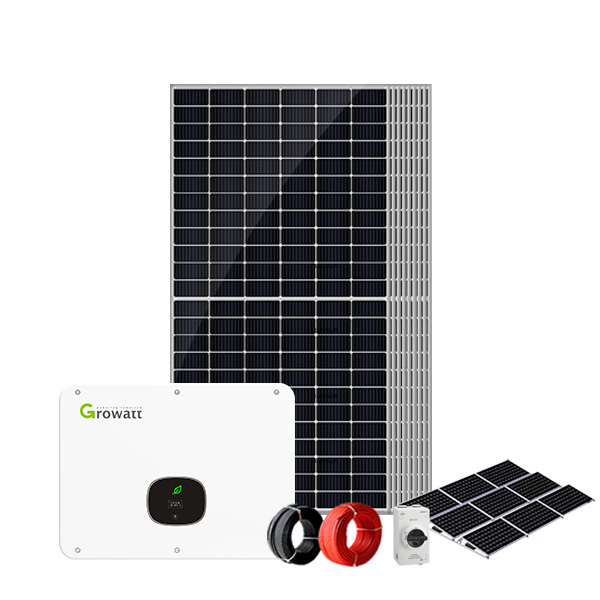

Complete On Grid System
|
||
|
System Power (KW)
|
3KW
|
5KW
|
10KW
|
|
Wifi/Gprs Module
|
1pc
|
1pc
|
1pc
|
|
450 W Mono Solar Panel (Pcs)
|
7 pcs
|
10 pcs
|
20 pcs
|
|
DC/AC Switch Break (Pcs)
|
1/1 pc
|
1/1 pc
|
2/1 pc
|
|
PV Cable (M)
|
100 meters
|
200 meters
|
400 meters
|
|
Mounting System
|
Customized
|
Customized
|
Customized
|
|
MC4 (Pair)
|
4 pairs
|
4 pairs
|
8 pairs
|

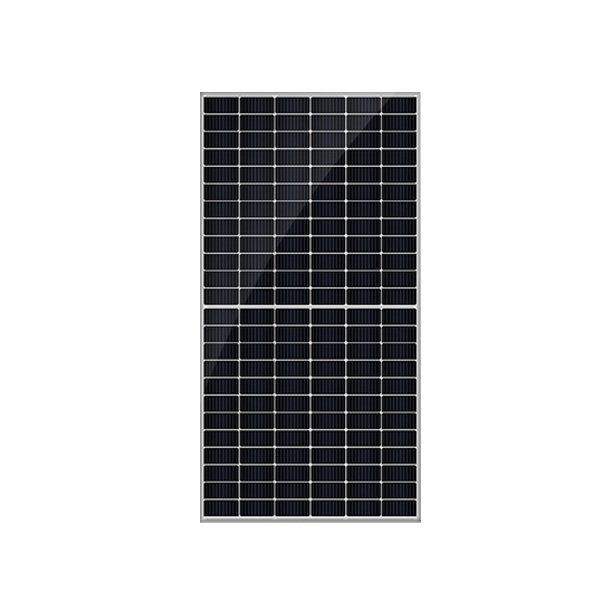

Solar Panel
* 21.5% Highest conversion efficiency
* Higher performance under low light
* MBB cell technology
*Junction box: IP68
* Frame:Aluminum alloy
* Application level:Class A
* 12 Years product warranty
* Frame:Aluminum alloy
* Application level:Class A
* 12 Years product warranty
* 25 Years power output guarantee

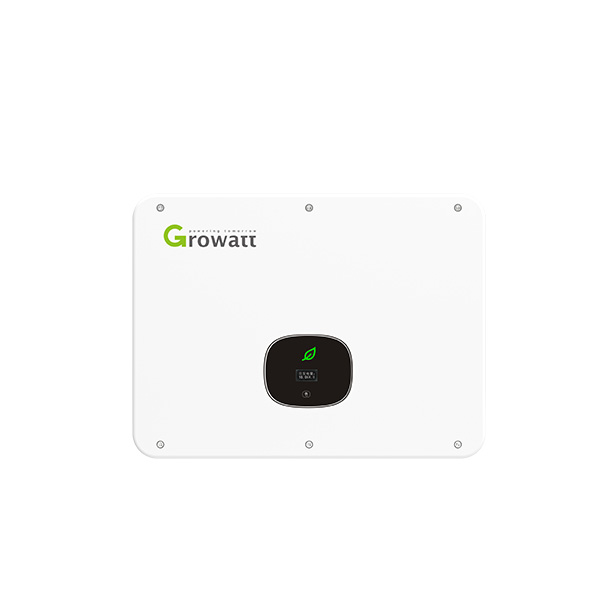

Growatt On Grid Solar Inverter（Optional）
* Touch key and OLED display
* Type II SPD on DC side
* Support export control
* Max. efficiency 98.4%
* String Monitoring
* Dual MPPT trackers
* Support export control
* Max. efficiency 98.4%
* String Monitoring
* Dual MPPT trackers
PV Mounting System
*Customized for roof&ground etc.
*Adjustable angle from 0~65 degree
*Compatible with all type solar panel
*Mid & End Clamps: 35,40,45,50mm
*L Foot Asphalt Shingle Mount & Hanger Bolt Optional
*Cable Clip & Tie Optional
*Ground Clip & Lugs Optional
*25 Years Warranty
*Compatible with all type solar panel
*Mid & End Clamps: 35,40,45,50mm
*L Foot Asphalt Shingle Mount & Hanger Bolt Optional
*Cable Clip & Tie Optional
*Ground Clip & Lugs Optional
*25 Years Warranty
DC&AC Disconnect Switch
*IP65 rated
*Rated voltage:600VDC/1000VDC
*Rated current:16A/32A
*Rated voltage:600VDC/1000VDC
*Rated current:16A/32A
*Ambient temperature: -25℃~85℃
*15Years Warranty
*15Years Warranty
Solar Accessories

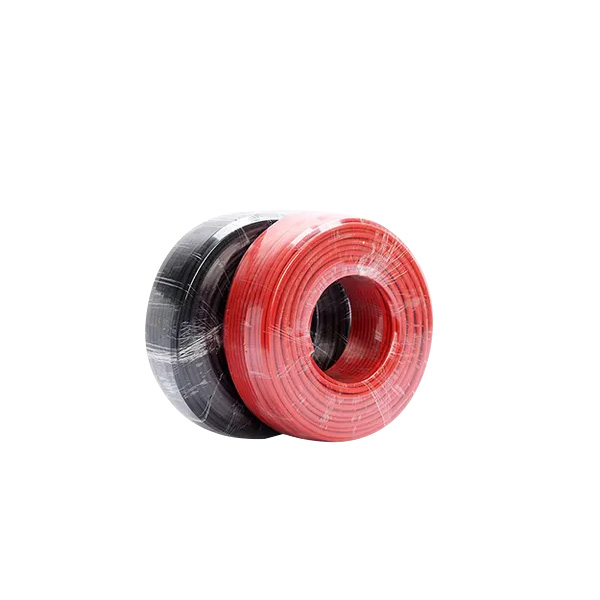

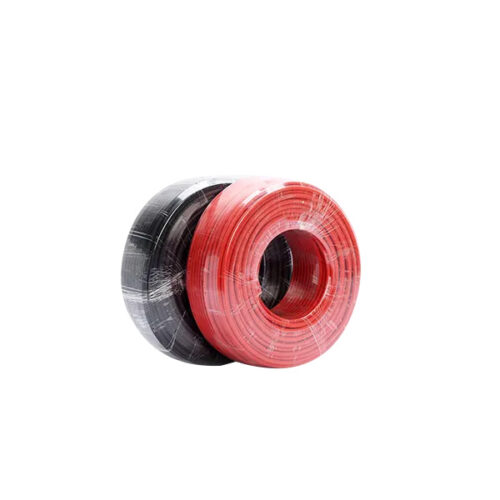

*Black/Red color 4/6 mm2 PV cable
*Universal compatible PV connectors
*With CE TUV certificate
*15Years warranty
*Universal compatible PV connectors
*With CE TUV certificate
*15Years warranty
