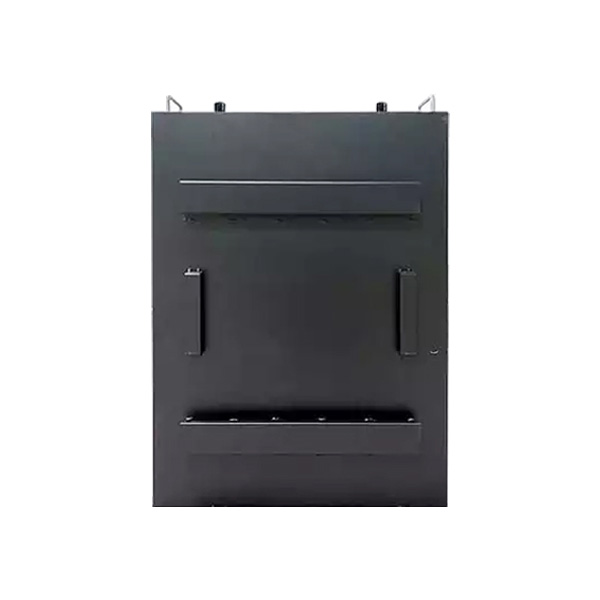

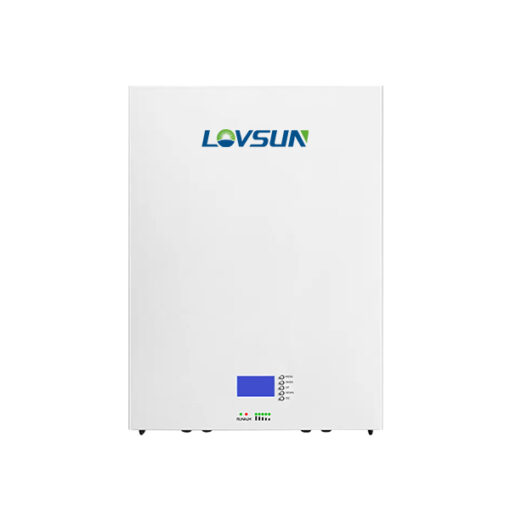

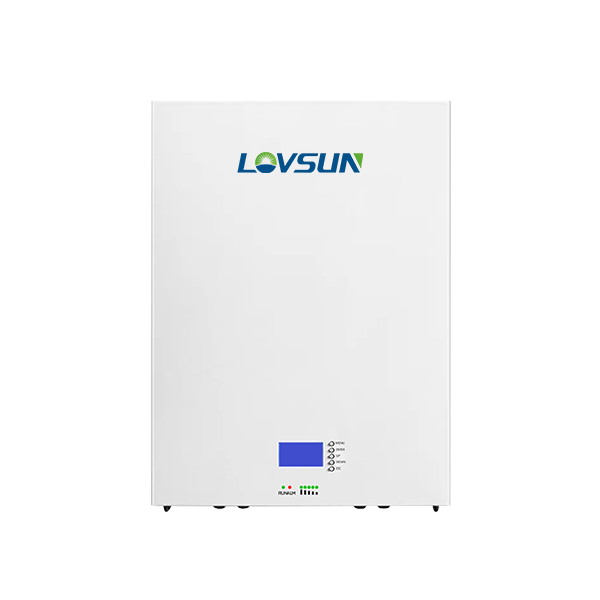

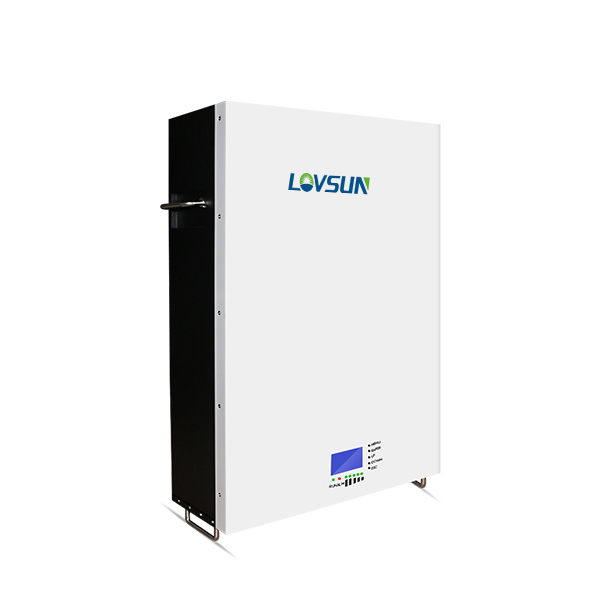

EU stock 10kwh lovsun Lithium Ion Battery Lifepo4 48v 200ah Powerwall Solar Storage Battery
|
Model
|
5000W
|
7000W
|
10000W
|
|
Nominal Voltage
|
51.2V(16series)
|
||
|
Capacity
|
100Ah
|
150Ah
|
200Ah
|
|
Energy
|
5120Wh
|
7680Wh
|
10240Wh
|
|
Internal Resistance
|
≤30mΩ
|
||
|
Cycle Life
|
≥5000 cycles @80% DOD, 25℃， 0.5C
≥4000 cycles @80% DOD, 40℃， 0.5C
|
||
|
Design Life
|
≥10 years
|
||
|
Charge Cut-off Voltage
|
56.0V ±0.5V
|
||
|
Max. Continuous Work Current
|
100A/150A(Can Choose)
|
||
|
Discharge Cut-off Voltage
|
45V ±0.2V
|
||
|
Charge Temperature
|
0℃~60℃（Under 0℃ extra heating mechanism)
|
||
|
Discharge Temperature
|
-20℃~60℃（Under 0℃ work with reduced capacity)
|
||
|
Storage Temperature
|
-40℃~55℃ @ 60% ± 25% relative humidity)
|
||
|
Dimensions
|
680 x 458 x 180(220mm)
|
||
|
Weight
|
Approx : 62kg
|
Approx : 79kg
|
Approx : 98kg
|
