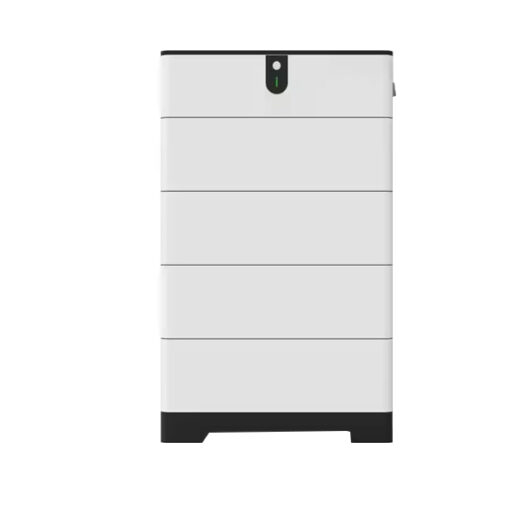

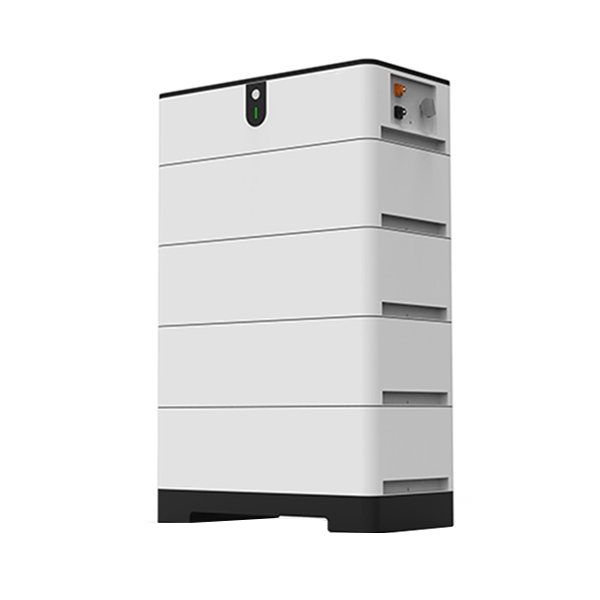

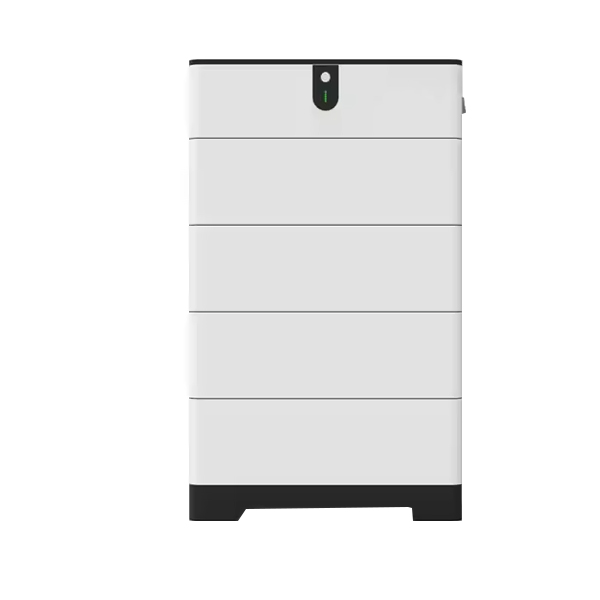

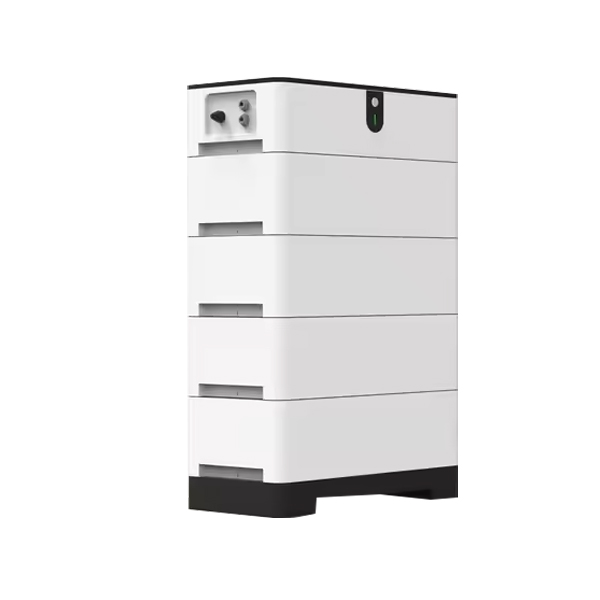

High Voltage Hv Battery 10kwh 20kwh 30kwh 40kwh 50kwh Stackable Home Energy Solar Storage Battery All In One
Specification
|
Nominal energy
|
5.12kWh
|
|
Usable energy
|
4.86kWh
|
|
Cell
|
1P32S
|
|
Rated voltage
|
102.4 V dc
|
|
Working voltage range
|
91.2~115.2V dc
|
|
Rated capacity
|
50 Ah
|
|
max chargeldischarge current
|
25A/40A
|
|
Communication
|
CAN、RS485、WIFI
|
|
Scalability
|
Max up to 8 in series
|
|
Humidity
|
≤95%
|
|
Working temperature range
|
Charge:0℃~50℃
Discharge:-20℃~50℃
|
|
Dimension(length*width*height)
|
646*330*188mm
|
|
Weight
|
≤48kg
|
|
Mounting mode
|
Stack
|
|
Ingress protection
|
IP65
|
|
Altitude
|
< 2000m
|
|
Certification
|
UN38.3/IEC61000/IEC62619/CE
|
|
Cycle life
|
>6000(25℃ )
|
|
Design life
|
15 years(25℃)
|
