Product Description


Product Parameters

|
Model
|
HDSX/HDSX-T
|
|||
|
Rated Power (KW)
|
10
|
40
|
100
|
160
|
|
Standard Battery Voltage (V)
|
48/96/192
|
192
|
384
|
|
|
Battery Type
|
Lead-acid/Gel/Lithium Battery
|
|||
|
Rated Current (A)
|
100
|
|||
|
MPPT Tracking Voltage Range (V)
|
60-120 (48V System)/120-240 (96VSystem)
240-360 (192V System)/480-640 (384V System)
|
|||
|
Rated Input Voltage (V)
|
380/400 Customizable 190/200/415
|
|||
|
AC Input Voltage Range (V)
|
323-456/323-480
|
|||
|
AC Output Voltage Range (V)
|
380/400V(A fluctuation range of 2%) 50/60HZ
|
|||
|
Protection Dgree
|
IP20
|
|||
|
Display
|
LCD
|
|||
|
Cooling
|
Intelligent fan
|
|||
|
Communication
|
RS485 / APP (GPS/WIFI) Optional
|
|||
|
Product Size (L*W*Hmm)
|
725*365*1010
|
720*575*1275
|
875*720*1380
|
1123*900*1605
|
|
Net Weight (kg)
|
122
|
260
|
552
|
755
|

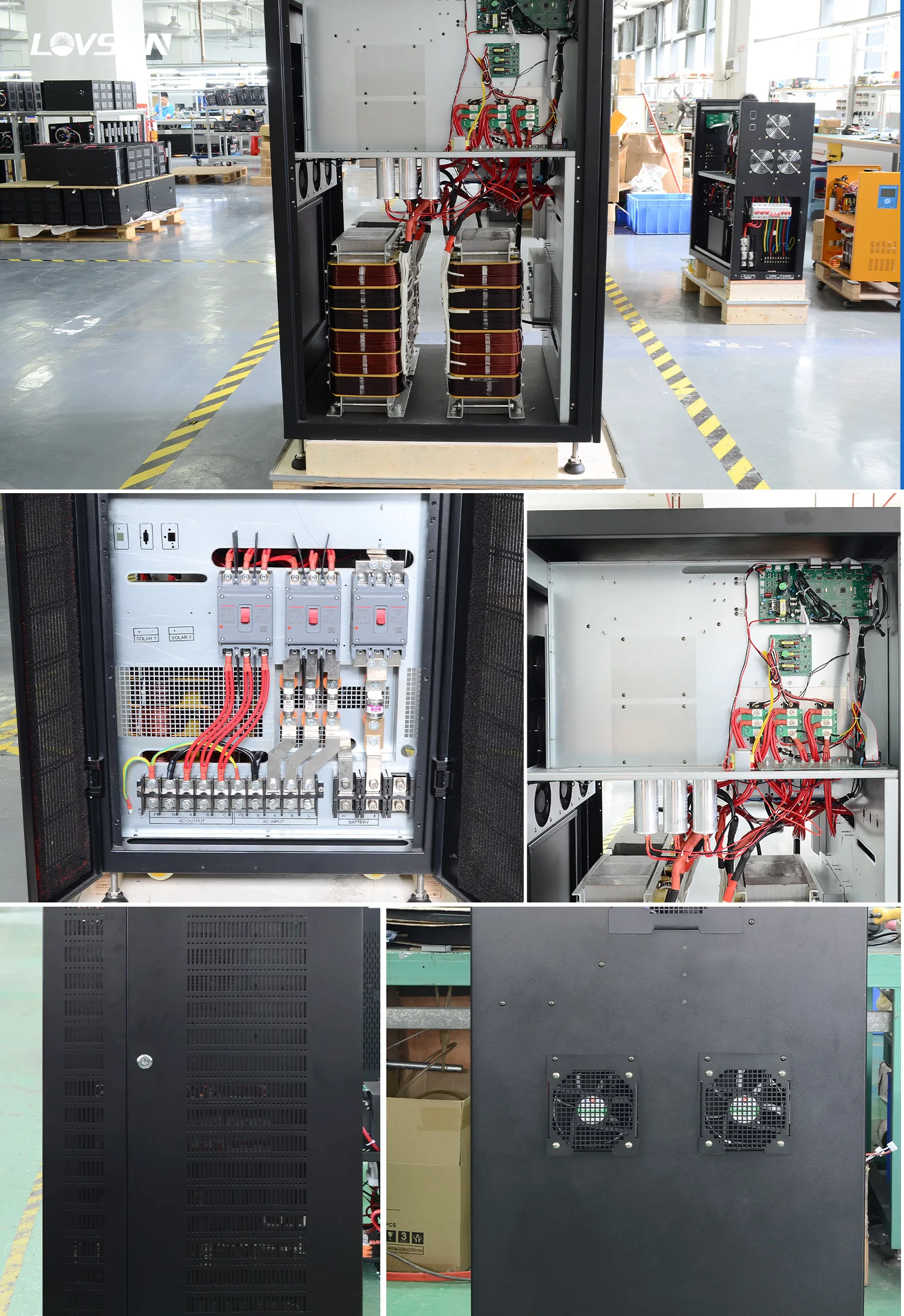

Products Details

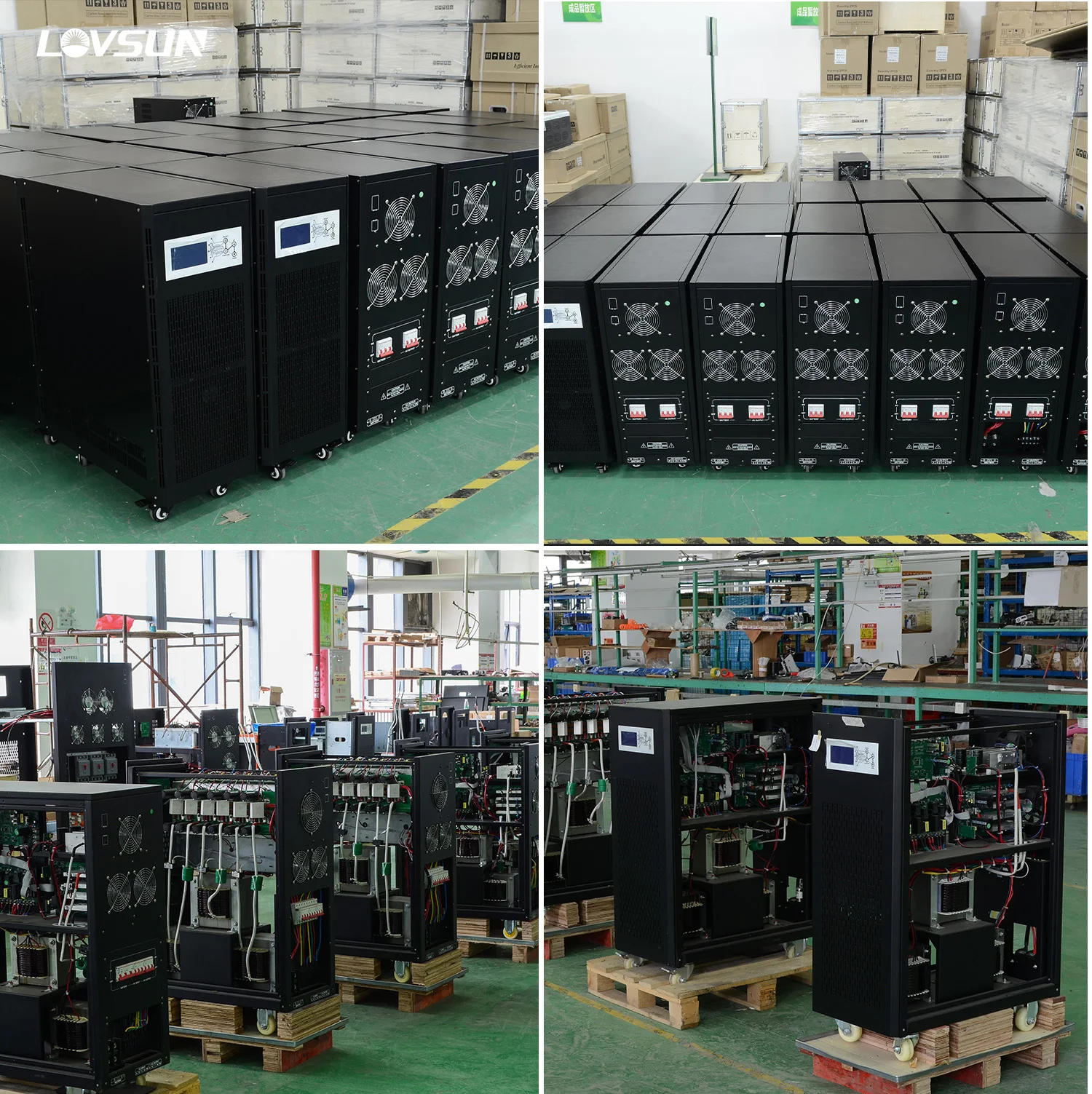

Produce Line

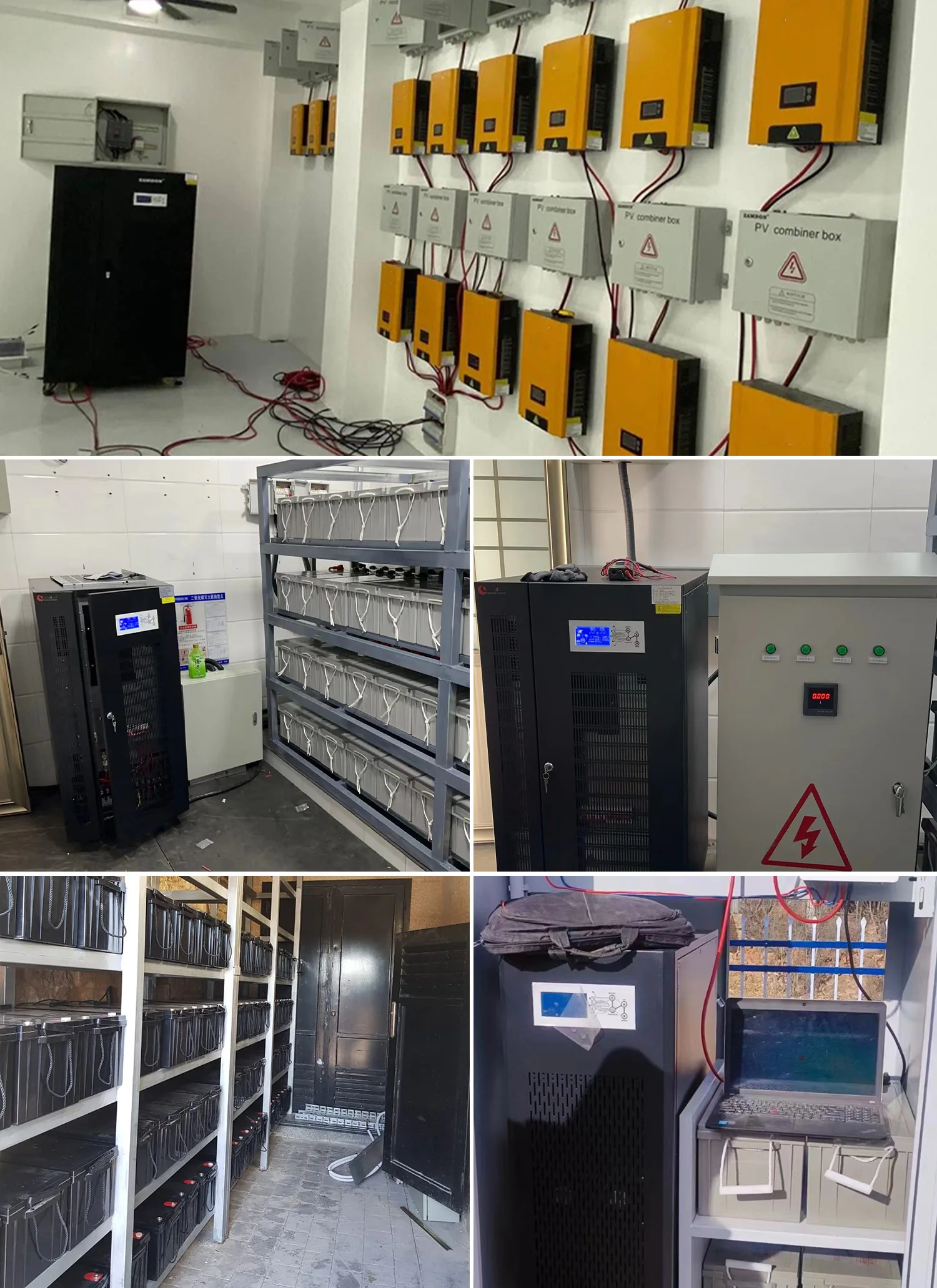

Project cases
