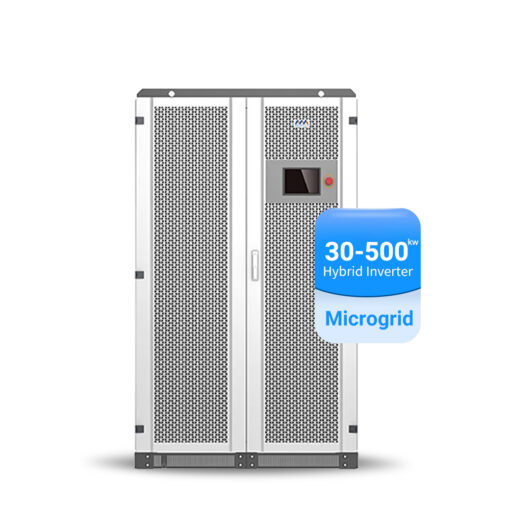

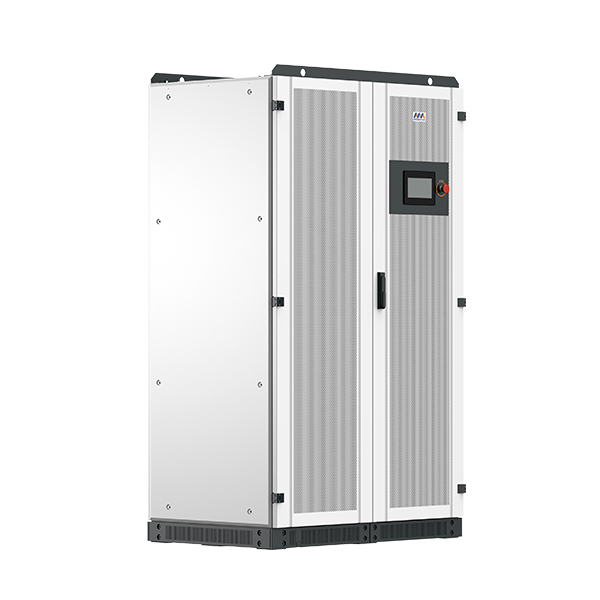

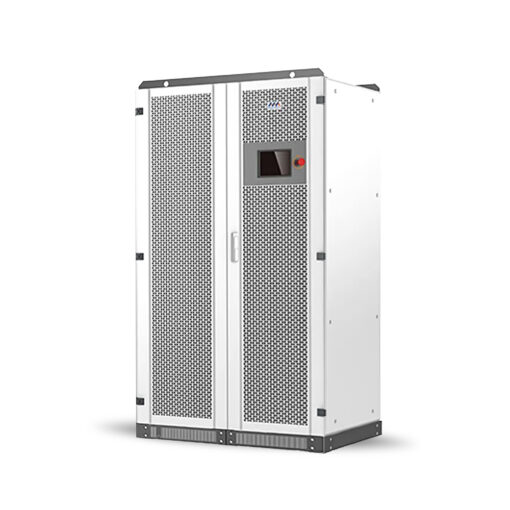

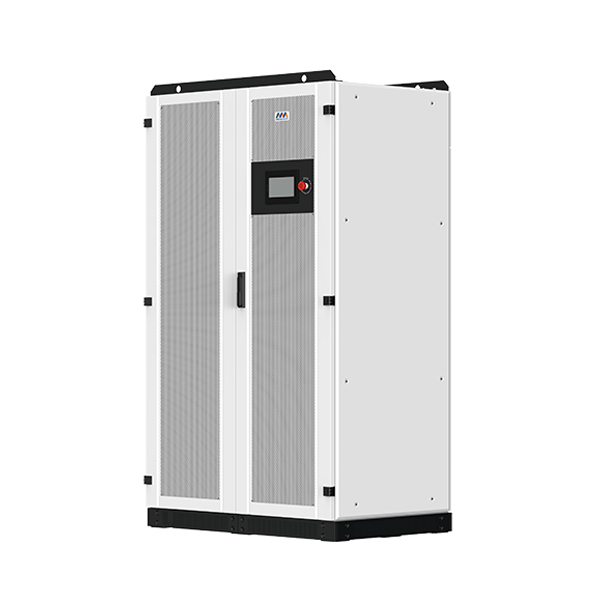

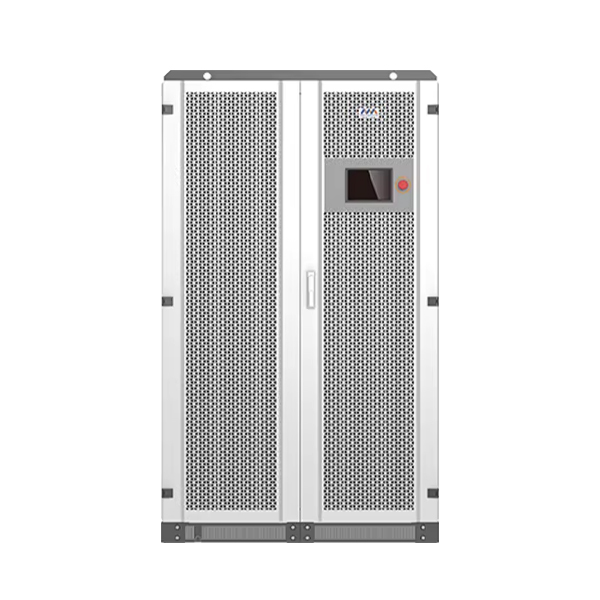

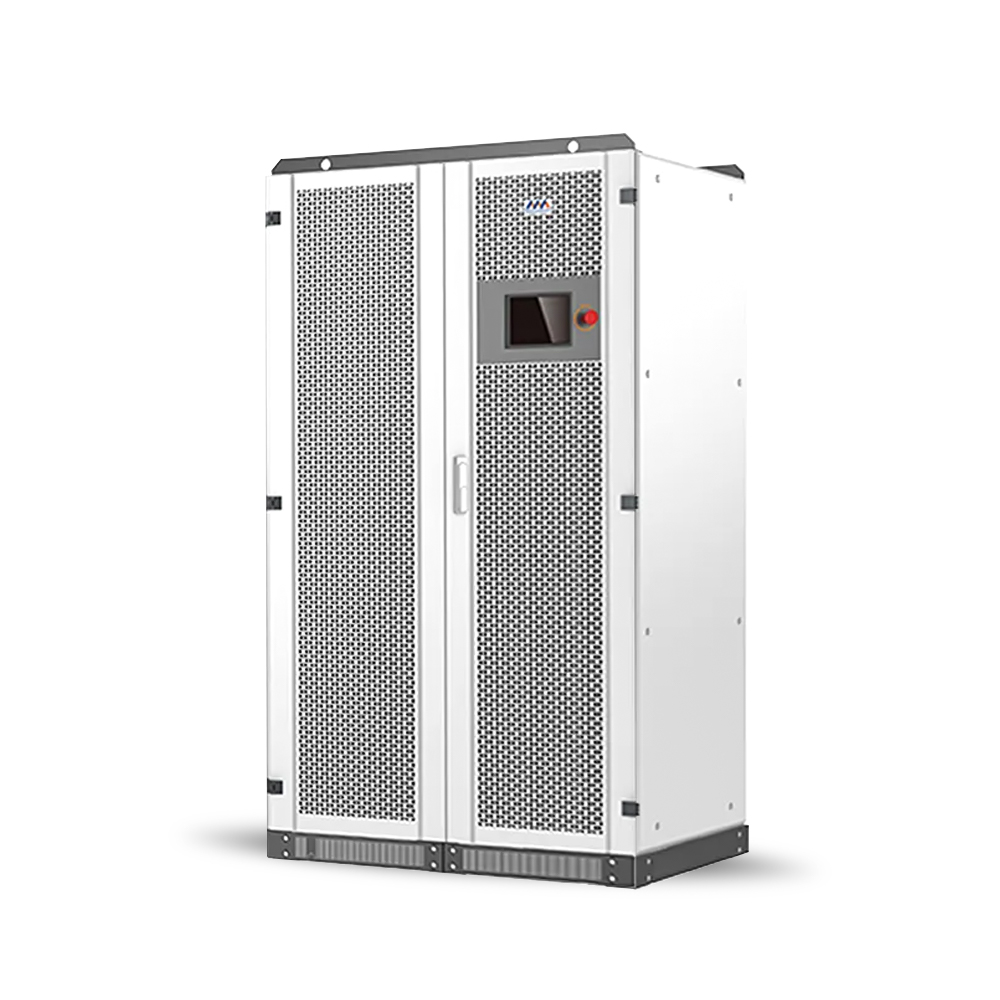

High Voltage Megarevo Solar Hybrid Inverter 30kw 50kw 100kw 150kw 250kw 500kw Inverter For Industry With Tuv And Ce Certificate
|
AC(on/off-grid)
|
||||||
|
Model
|
MPS0030
|
MPS0050
|
MPS0100
|
MPS0150
|
MPS0250
|
MPS0500
|
|
Rated voltage(V)
|
400VAC, 50/60HZ
|
|||||
|
Voltage range(V)
|
320~460
|
|||||
|
Rated current(A
|
43
|
72
|
144
|
216
|
361
|
722
|
|
Transformer ratio
|
100/400
|
200/400
|
270/400
|
270/400
|
270/400
|
315/400
|
|
PV input
|
||||||
|
Max.PV input voltage(V)
|
1,000
|
|||||
|
MPPT voltage range(V)
|
250-850
|
|||||
|
Battery
|
||||||
|
Battery voltage range(V)
|
500~850
|
|||||
|
General data
|
||||||
|
Dimension W*D*H (mm)
|
800*800*1,900
|
800*800*1,900
|
1,200*800*2,050
|
1,200*800*2,050
|
(600*720*2,050)*1+1,200*800*2,050
|
1,600*1050*2,050
|
|
Net
Weight (kg) |
576/607
|
720/750
|
1,120/1,150/1,180
|
1,250/1,280/1,310
|
1,980/2,010
|
3,265/3,295/3,325
|
|
Ingress protection
|
IP20
|
|||||
|
DeratingOperating altitude
|
5,000m(>3,000 Derating)
|
|||||
|
Cooling
|
Air Cooling
|
|||||
|
Display and communication
|
||||||
|
Display
|
LCD touch-screen
|
|||||
|
BMS communication
|
RS485, CAN
|
|||||
|
EMS communication
|
RS485, TCP/IP
|
|||||
|
Certifificates
|
EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4, South Africa NRS097-2-1:2017,Pakistan & India IEC61727, IEC62116, IEC 61683
|
|||||
