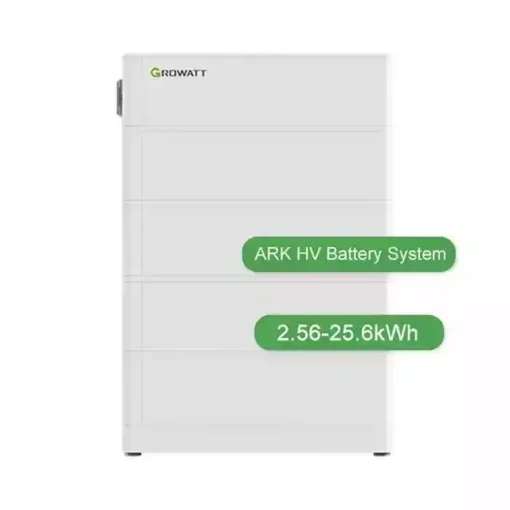

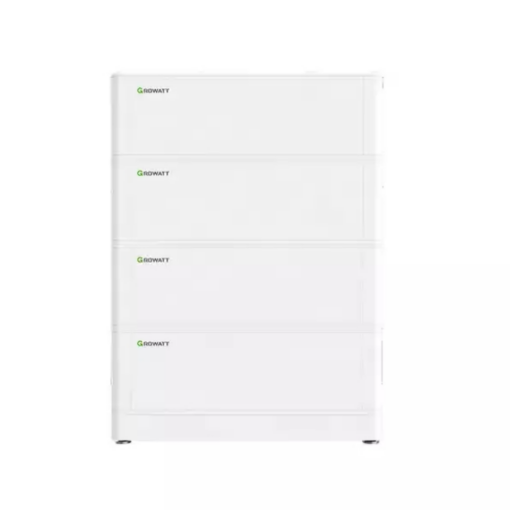

Growatt Solar System ARK 10.2H 10kwh 20.4H 20kwh Battery Growatt Storage Battery
Specifications
|
Datasheet
|
ARK 7.68H
|
ARK 10.24H
|
ARK 15.36H
|
ARK 20.48H
|
ARK 25.6H
|
|
Battery Module
|
ARK 2.5H-A1(2.56kWh, 51.2V, 28kg)
|
||||
|
Number of Modules
|
3
|
4
|
6
|
8
|
10
|
|
Energy Capacity
|
7.68kWh
|
10.24kWh
|
15.36kWh
|
20.48kWh
|
25.6kWh
|
|
Usable Capacity
|
6.9kWh
|
9.21kWh
|
13.81kWh
|
18.43kWh
|
23.04kWh
|
|
Nominal Voltage
|
153.6V
|
204.8V
|
307.2V
|
409.6V
|
512V
|
|
Operating Voltage Range
|
141.6-170.4V
|
188.8-227.2V
|
283.2-340.8V
|
377.6-454.4V
|
472-568V
|
|
Dimension(W/D/H)/mm
|
650/260/725
|
650/260/905
|
650/260/1265
|
650/260/1625
|
650/260/1985
|
|
Weight
|
91kg
|
118kg
|
172kg
|
226kg
|
280kg
|
|
General
|
|
|
Battery Type
|
Cobalt-free Lithium Iron Phosphate(LFP)
|
|
Standard Charge/Discharge Current
|
25A/0.5C
|
|
IP Protection
|
IP65
|
|
Installation
|
Wall-mounted or Floor installation
|
|
Operation Temperature
|
-10-50°C
|
|
Warranty
|
10 Years
|
|
BMS Controller
|
HVC 60050-A1
|
|
Weight
|
8kg
|
|
Communication Port
|
CAN
|
|
Dimension(W/D/H)/mm
|
650/260/185mm
|
|
BMS Monitoring Parameters
|
SOC, System voltage, current, cell voltage, cell temperature, PCBA temperature measurement
|
