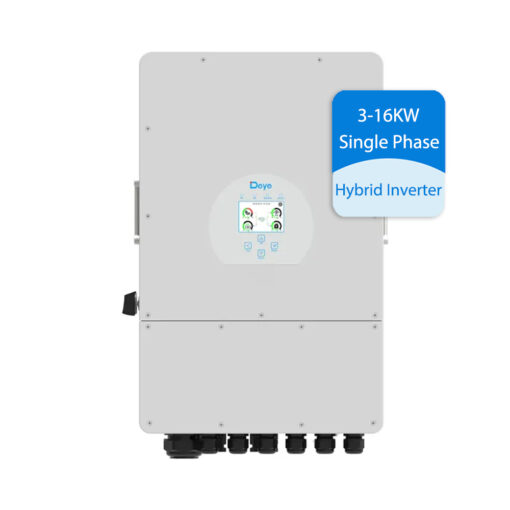

Deye Hybrid Inverter 5KW 8KW Single Phase Inverter
Specification
|
Model
|
SUN-5K-SG01LP1-US/EU
|
SUN-8K-SG01LP1 -US/EU
|
|
Battery Input Data
|
||
|
Battery Type
|
Lead-acid or Li-Ion
|
|
|
Battery Voltage Range (V)
|
40-60V
|
|
|
Max. Charging Current (A)
|
120A
|
190A
|
|
Max. Discharging Current (A)
|
120A
|
190A
|
|
Charging Curve
|
3 Stages / Equalization
|
|
|
External Temperature Sensor
|
Yes
|
|
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
|
|
PV String Input Data
|
||
|
Max. DC Input Power (W)
|
6500W
|
10400W
|
|
PV Input Voltage (V)
|
370V (100V~500V)
|
|
|
MPPT Range (V)
|
125V-425V
|
|
|
Start-up Voltage (V)
|
150 V
|
|
|
PV Input Current (A)
|
11A+11A
|
22A+22A
|
|
No.of MPPT Trackers
|
2
|
|
|
No.of Strings Per MPPT Tracker
|
1+1
|
2+2
|
|
AC Output Data
|
||
|
Rated AC Output and UPS Power (W)
|
5000W
|
8000W
|
|
Max. AC Output Power (W)
|
5500W
|
8800W
|
|
Peak Power (off grid)
|
2 times of rated power, 10 S
|
|
|
AC Output Rated Current (A)
|
20.8A
|
33.4A / 35A
|
|
Max. AC Current (A)
|
22.9A
|
36.7A / 38.5A
|
|
Max. Continuous AC Passthrough (A)
|
35A
|
50A
|
|
Output Frequency and Voltage
|
50 / 60Hz; 120 / 240Vac (split phase), 208Vac (2 / 3 phase),
230Vac (single phase)
|
|
|
Grid Type
|
Split phase; 2 / 3 phase; Single Phase
|
|
|
Current Harmonic Distortion
|
THD<3% (Linear load<1.5%)
|
|
|
Efficiency
|
||
|
Max. Efficiency
|
97.60%
|
|
|
Euro Efficiency
|
97.00%
|
|
|
MPPT Efficiency
|
99.90%
|
|
|
Protection
|
||
|
PV Input Lightning Protection
|
Integrated
|
|
|
Anti-islanding Protection
|
Integrated
|
|
|
PV String Input Reverse Polarity Protection
|
Integrated
|
|
|
Insulation Resistor Detection
|
Integrated
|
|
|
Residual Current Monitoring Unit
|
Integrated
|
|
|
Output Over Current Protection
|
Integrated
|
|
|
Output Shorted Protection
|
Integrated
|
|
|
Output Over Voltage Protection
|
Integrated
|
|
|
Surge protection
|
DC Type II/ACType II
|
|
|
Certifications and Standards
|
||
|
Grid Regulation
|
IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1
|
|
|
Safety EMC / Standard
|
IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11,1EC61000-3-12
|
|
|
General Data
|
||
|
Operating Temperature Range (°C)
|
-25~60°C, >45°C Derating
|
|
|
Cooling
|
Smart cooling
|
|
|
Noise (dB)
|
<30 dB
|
|
|
Communication with BMS
|
RS485; CAN
|
|
|
Weight (kg)
|
32
|
|
|
Size (mm)
|
420W×670H×233D
|
|
|
Protection Degree
|
IP65
|
|
|
Installation Style
|
Wall-mounted
|
|
|
Warranty
|
5 years
|
|
Inverter Features
*AC Coupled
Update existed solar on-grid system to hybrid
*Smart Load
Use Gen input as crucial load output
*BMS
Compatible with PYLONTECH,LG,BYD etc brand battery
*Multiple Output
120V/240V Split phase,220V Single phase
*Protections
PV rapid shutdown control,PV Arc Fault detection,PV input lightning protection
*Multiple Working Modes
Grid Tied,Hybrid or OFF Grid.Simultaneously manages power to/from Solar,Battery,Grid,Load and Generator
*Additional Feature
UPS time less than 5ms. Six stages time of use setting. Charge and discharge up to 190A 8KW (125A 5KW), Load or home power first with zero export to grid.
Update existed solar on-grid system to hybrid
*Smart Load
Use Gen input as crucial load output
*BMS
Compatible with PYLONTECH,LG,BYD etc brand battery
*Multiple Output
120V/240V Split phase,220V Single phase
*Protections
PV rapid shutdown control,PV Arc Fault detection,PV input lightning protection
*Multiple Working Modes
Grid Tied,Hybrid or OFF Grid.Simultaneously manages power to/from Solar,Battery,Grid,Load and Generator
*Additional Feature
UPS time less than 5ms. Six stages time of use setting. Charge and discharge up to 190A 8KW (125A 5KW), Load or home power first with zero export to grid.
