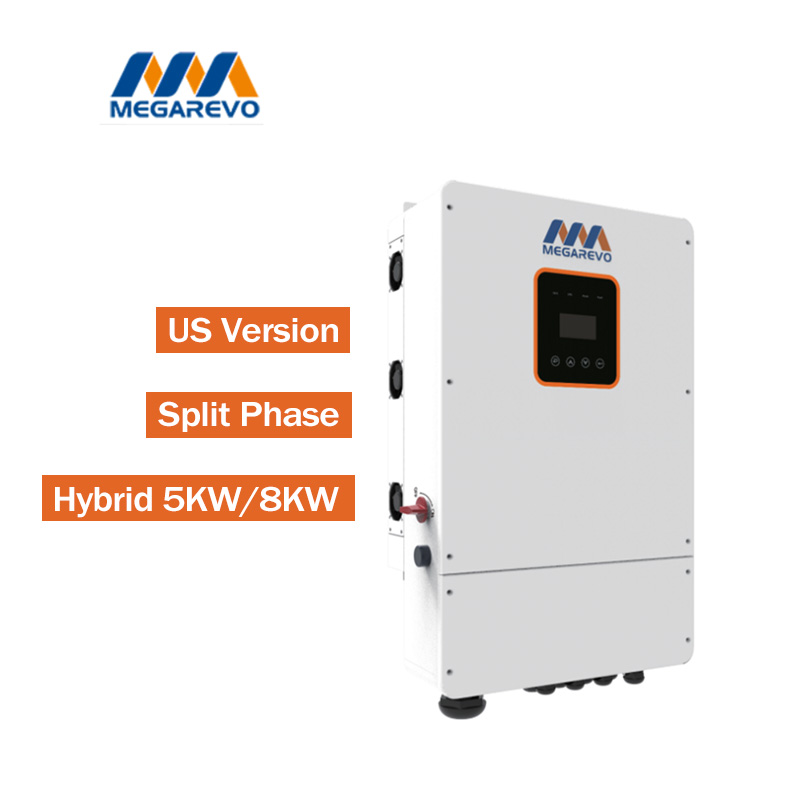

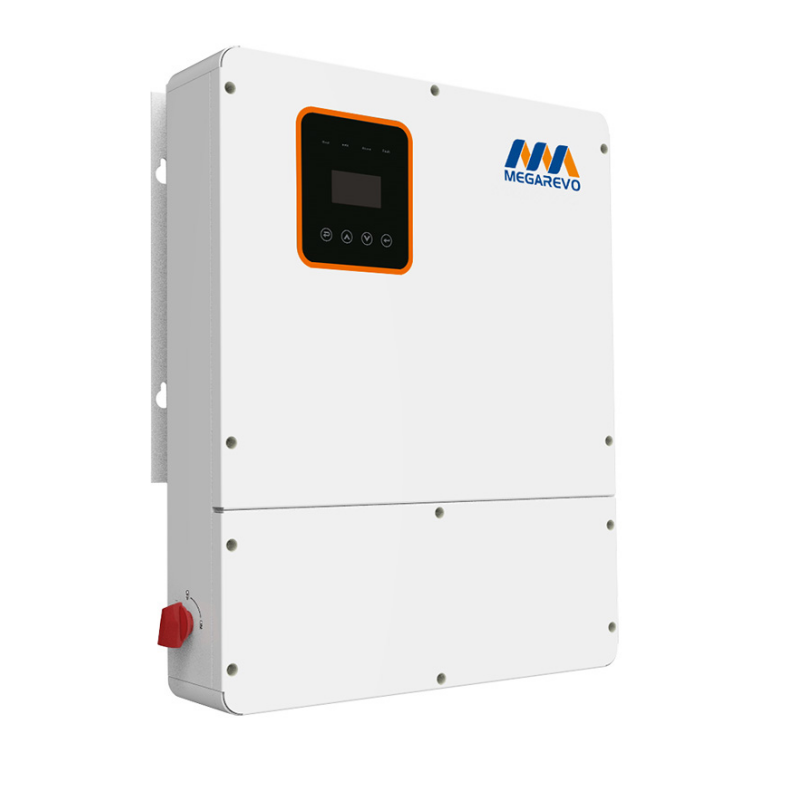

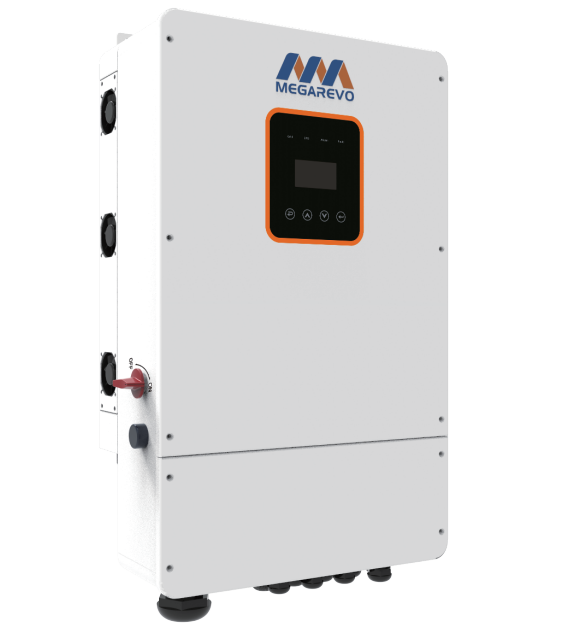

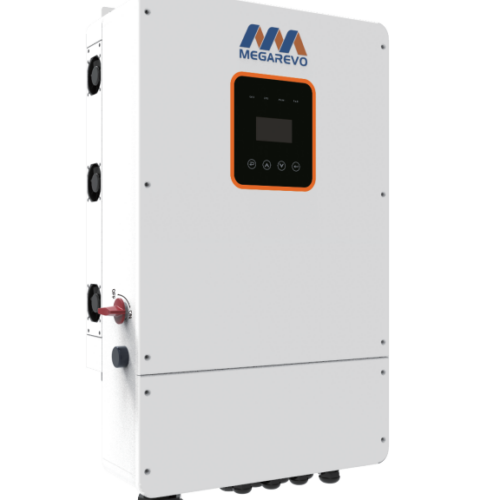

IP 65 Megarevo R8KLNA 8KW Split Phase 120V/240V Solar Hybrid Inverter 10KW With Parallel Function
Energy Storage Hybrid Inverter (Low Battery Voltage)
1.Flexible
1.Flexible
* Wide input voltage range. * Compatible with lead-acid or lithium-ion batteries or other battery.
2.Grace
* Fashion apperance,
light weight,smart operation.
light weight,smart operation.
* Natural cooling, low noise.
* IP65, wall mounted design, saving space. *Touch screen LCD
3.Reliable
* Compatible
3.Reliable
* Compatible
anti counter flow function.
* Battery reverse connect protection.
4.Advanced
* Intelligent energy management system for home.
* Power dispatching and demand side response management.
* Distributed virtual power station management
4.Advanced
* Intelligent energy management system for home.
* Power dispatching and demand side response management.
* Distributed virtual power station management
|
Model
|
R5KLNA
|
R6KLNA
|
R7K6LNA
|
R8KLNA
|
|
Battery Data
|
||||
|
Battery Type
|
Lead-acid or Lithium-ion
|
|||
|
Battery Voltage Range
|
48V
|
48V
|
48V
|
48V
|
|
Max Charging/Dis
charging Current
|
120A/120A
|
135A/135A
|
190A/190A
|
190A/190A
|
|
PV Input Data
|
||||
|
PV Input Power
|
7.5KW
|
9KW
|
12KW
|
12KW
|
|
MPPT Number
|
4
|
|||
|
PV Voltage Range
|
350V/85-500V
|
|||
|
MPPT Voltage Range
|
120V-500V
|
|||
|
Single MPPT Input Current
|
12A
|
12A
|
12A
|
12A
|
|
On Grid AC Output
|
||||
|
Rate AC Output Power
|
5KVA
|
6KVA
|
7.6KVA
|
8KVA
|
|
AC Output Voltage
|
120/240Vac(split phase), 208Vac(2/3 phase), 230Vac(single phase)
|
|||
|
AC Output Frequency
|
50/60Hz
|
|||
|
Grid Type
|
Split phase; 2/3 phase; Single phase
|
|||
|
Max Output Current
|
24A
|
28.8A
|
36.5A
|
38.3A
|
|
AC Reverse Charging
|
Yes
|
|||
|
Back-up AC Output
|
||||
|
Rated Backup Output Power
|
5KVA
|
6KVA
|
7.6KVA
|
8KVA
|
|
Max Ba
ckup Output Power
|
6.25KVA 60S
|
7.5KVA 60S
|
9.5KVA 60S
|
10KVA 60S
|
|
Backup AC Output Voltage
|
120/240Vac(split phase), 208Vac(2/3 phase), 230Vac(single phase)
|
|||
|
Efficiency
|
||||
|
Max Efficiency
|
≥98.2%
|
|||
|
CEC Efficiency
|
≥97.2%
|
|||
|
Protection
|
||||
|
Ground Protection
|
YES
|
|||
|
Islanding Protection
|
YES
|
|||
|
Battery Reverse Protection
|
YES
|
|||
|
Output Overvoltage Protection
|
YES
|
|||
|
AC&DC Over-current Protection
|
YES
|
|||
|
Overheating Protection
|
YES
|
|||
|
Ge
neral Data
|
||||
|
Operation Temperature Range
|
-25~ +60℃
|
|||
|
Environment Humidity
|
0-95%
|
|||
|
Weight
|
32KG
|
|||
|
Dimension(W*H*D)
|
430*710*210mm
|
|||
|
Cooling
|
Fan Cooling
|
|||
|
Noise(dB)
|
＜25dB
|
＜29dB
|
＜29dB
|
＜29dB
|
|
Display
|
LCD
|
|||
|
Communication
|
Modbus, RS485, WIFI, 4G
|
|||
|
Safety
|
EN61000-6-1, EN61000-6-3, FCC 15 class B
|
|||
|
EMC
|
IEC62109-1, IEC62109-2
|
|||
|
On Grid
|
UL1741,IEEE1547,RULE21,VDE 0126,AS4777,NRS2017,G98,G99
|
|||
