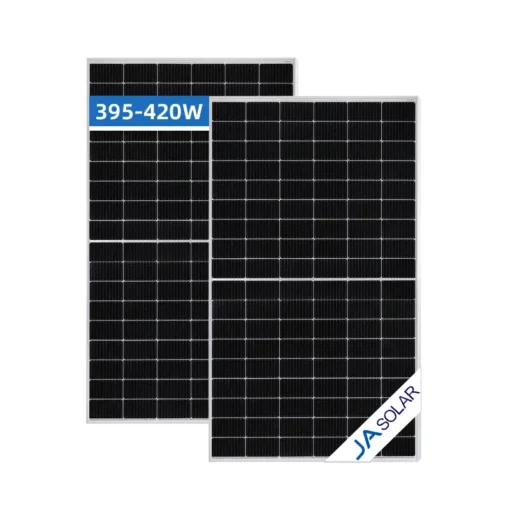

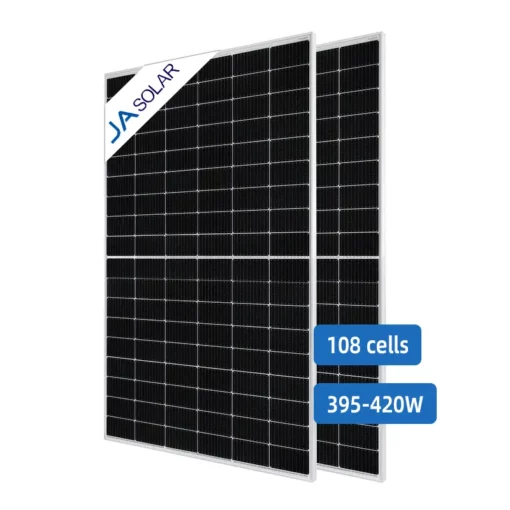

Ja 395W 400W 405W 410W 420W Solar PV Panels JAM54S30 395-420/MR 420W MBB JA Half cell Solar Panel
|
ELECTRICAL PARAMETERS AT STC
|
||||||
|
TYPE
|
JAM54S30 -395/MR
|
JAM54S30 -400/MR
|
JAM54S30 -405/MR
|
JAM54S30 -410/MR
|
JAM54S30 -415/MR
|
JAM54S30 -420/MR
|
|
Rated Maximum Power(Pmax) [W]
|
395
|
400
|
405
|
410
|
415
|
420
|
|
Open Circuit Voltage(Voc) [V]
|
36.98
|
37.07
|
37.23
|
37.32
|
37.45
|
37.58
|
|
Maximum Power Voltage(Vmp) [V]
|
30.84
|
31.01
|
31.21
|
31.45
|
31.61
|
31.80
|
|
Short Circuit Current(lsc) [A]
|
13.70
|
13.79
|
13.87
|
13.95
|
14.02
|
14.10
|
|
Maximum Power Current(lmp) [A]
|
12.81
|
12.90
|
12.98
|
13.04
|
13.13
|
13.21
|
|
Module Efficiency [%]
|
20.2
|
20.5
|
20.7
|
21.0
|
21.3
|
21.5
|
|
Power Tolerance
|
0-+5W
|
|||||
|
Temperature Coefficient of Isc(ajsc)
|
+0.045%°C
|
|||||
|
Temperature Coefficient of Voc(p_Voc)
|
-0.275%/°C
|
|||||
|
Temperature Coefficient of Pmax(y_Pmp)
|
-0.350%/°C
|
|||||
|
STC
|
Irradiance 1000W/m2, cell temperature 25°C, AM1.5G
|
|||||
|
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types.
|
||||||
