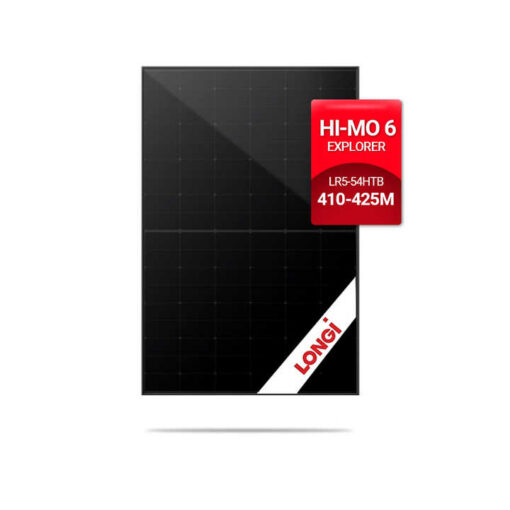

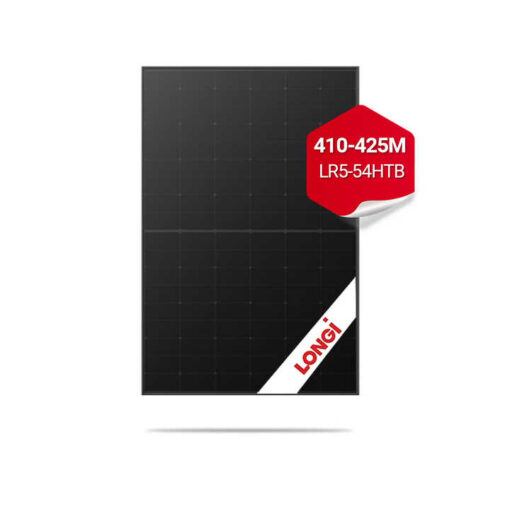

Longi Trina Jinko Ja Solar Panel price 420w 425w 430w 435w 440w solar pv panel for Solar Energy System
|
Module Number
|
LR5-54HTB-410M
|
LR5-54HTB-415M
|
LR5-54HTB-420M
|
LR5-54HTB-425M
|
|
|
Testing Condition
|
STC NOCT
|
STC NOCT
|
STC NOCT
|
STC NOCT
|
|
|
Maximum Power (Pmax/W)
|
410 306
|
415 310
|
420 314
|
425 318
|
|
|
Open Circuit Voltage (Voc/V)
|
38.63 36.27
|
38.83 36.46
|
39.03 36.65
|
39.23 36.83
|
|
|
Short Circuit Current (Isc/A)
|
13.70 11.07
|
13.78 11.13
|
13.85 11.19
|
13.93 11.25
|
|
|
Voltage at Maximum Power(Vmp/V)
|
32.36 29.53
|
32.56 29.71
|
32.76 29.89
|
32.96 30.08
|
|
|
Current at Maximum Power(Imp/A)
|
12.67 10.37
|
12.75 10.44
|
12.83 10.50
|
12.90 10.56
|
|
|
Module Efficiency(%)
|
21.0
|
21.3
|
21.5
|
21.8
|
|
|
Voc and Isc Tolerance ±3%
|
|||||
|
Maximum System Voltage DC1500V(IEC)
|
|||||
|
Max Series Fuse Rating 25A
|
|||||
|
Operate Temperature Scope -40°C+85°C
|
|||||
|
Nominal Operating Cell Temperature 45±2°C
|
|||||
|
Standard Test Conditions: Irradiance 1000 W/m2； Cell temperature 25 C. Spectra at 1.5AM
|
|||||
|
NOCT(Nominal Operating Cell Temperature)：Irradiance 800W/㎡,Ambient Temperature 20℃， Spectra at AM1.5 Wind at 1m/s
|
|||||
On grid solar system connects to grid, self consumption first,excess power can be sold to the grid.
Grid tie solar system mainly consists of solar panels, grid tie inverter, brackets, etc.
Energy Storage Solar System can connect to grid, self consumption first, excess power can be stored in the battery
Hybrid solar system mainly consists of pv modules, hybrid inverter, mounting system, battery,etc.
Stand alone solar system works alone without city power
Off grid solar system mainly consists of solar panels, off grid inverter, charge controller, solar battery, etc
One stop solution for solar power system
For more information, please feel free to contact our team
