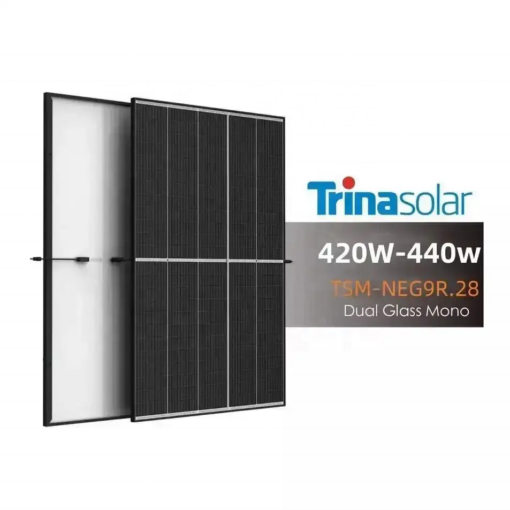

Trina Vertex S 440w NEG9R.28 Solar Panel
|
ELECTRICAL DATA (STC)
|
||||||
|
Peak Power Watts-P
MAX (Wp)* |
425
|
430
|
435
|
440
|
445
|
450
|
|
Power Tolerance-PMAX(W)
|
0~+5W
|
|||||
|
Maximum Power Voltage-Vmp(V)
|
42.9
|
43.2
|
43.6
|
44.0
|
44.3
|
44.6
|
|
Maximum Power Current-IMPP(A)
|
9.92
|
9.96
|
9.99
|
10.01
|
10.05
|
10.09
|
|
Open Circuit Voltage-VOC(V)
|
50.9
|
51.4
|
51.8
|
52.2
|
52.6
|
52.9
|
|
Short Circuit Current-ISC(A)
|
10.56
|
10.59
|
10.64
|
10.67
|
10.71
|
10.74
|
|
Module Eciency
η m (%) |
21.3
|
21.5
|
21.8
|
22.0
|
22.3
|
22.5
|
