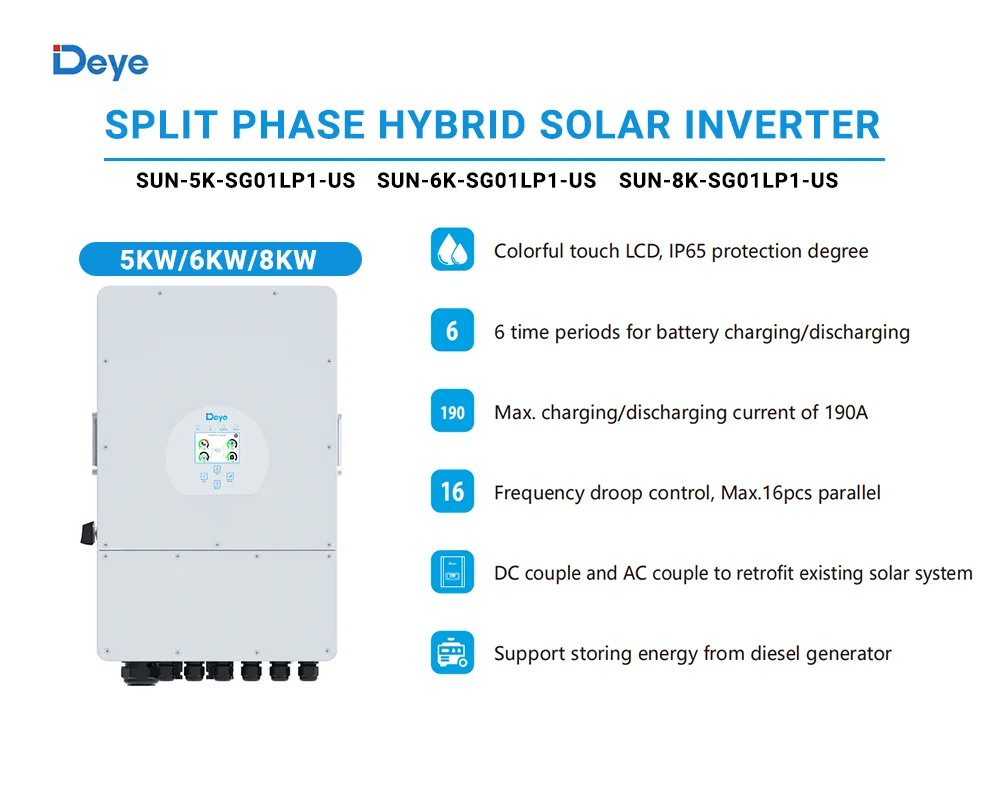

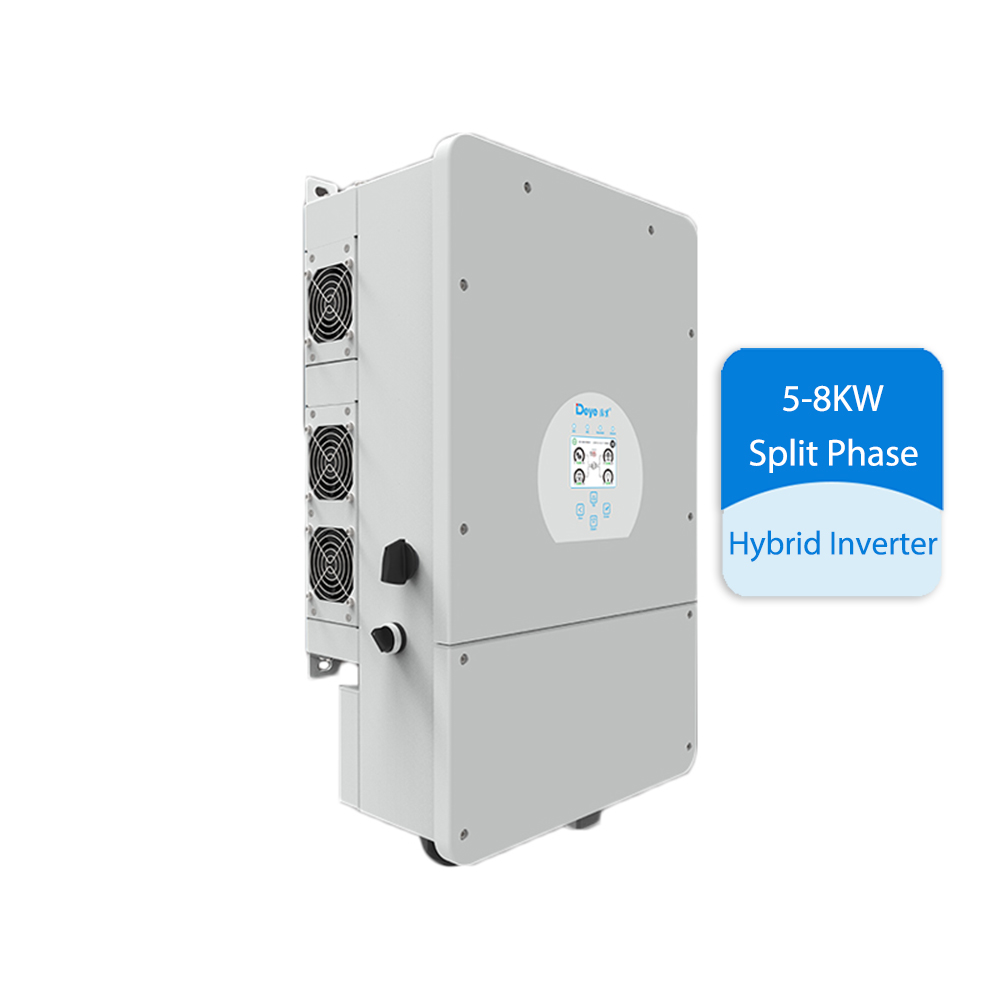

Model
|
SUN-5K-SG01LP1-US
|
SUN-6K-SG01LP1-US
|
SUN-8K-SG01LP1-US
|
|
Battery Input Data
|
|||
|
Battery Type
|
Lead-acid or Lithium-Ion
|
||
|
Battery Voltage Range (V)
|
40-60V
|
||
|
Max. Charging Current (A)
|
120A
|
135A
|
190A
|
|
Max. Discharging Current (A)
|
120A
|
135A
|
190A
|
|
Charging Curve
|
3 Stages / Equalization
|
||
|
External Temperature Sensor
|
Yes
|
Yes
|
Yes
|
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
||
|
PV String Input Data
|
|||
|
Max. DC Input Power (W)
|
6500W
|
7800W
|
10400W
|
|
PV Input Voltage (V)
|
370V (125V~500V)
|
||
|
MPPT Range (V)
|
150V-425V
|
||
|
Start-up Voltage (V)
|
125V
|
||
|
PV Input Current (A)
|
13A+13A
|
26A+13A
|
26A+26A
|
|
No.of MPPT Trackers
|
2
|
||
|
No.of Strings Per MPPT Tracker
|
1
|
2+1
|
2
|
|
AC Output Data
|
|||
|
Rated AC Output and UPS Power (W)
|
5000W
|
6000W
|
8000W
|
|
Max. AC Output Power (W)
|
5000W
|
6600W
|
8800W
|
|
Peak Power (off grid)
|
2 times of rated power, 10 S
|
||
|
AC Output Rated Current (A)
|
20.8/24
|
25/28.8
|
33.3/38.5
|
|
Max. AC Current (A)
|
22.9/26.4A
|
27.5/31.7A
|
36.7/42.3A
|
|
Max. Continuous AC Passthrough (A)
|
40A
|
50A
|
|
|
Output Frequency and Voltage
|
50 / 60Hz; L1/L2/N(PE) 120/240Vac (split phase), 208Vac (2/3 phase),
L/N/PE 220/230Vac (single phase) |
||
|
Current Harmonic Distortion
|
THD<3% (Linear load<1.5%)
|
||
|
Grid Type
|
Split phase; 2/3 phase; Single Phase
|
||
|
Efficiency
|
|||
|
Max. Efficiency
|
97.60%
|
||
|
Euro Efficiency
|
97.00%
|
||
|
MPPT Efficiency
|
99.90%
|
||
|
Protection
|
|||
|
Integrated
|
PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection |
||
|
Output Over Voltage Protection
|
DC Type II/AC Type III
|
||
|
Certifications and Standards
|
|||
|
Grid Regulation
|
CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98,
VDE 0126-1-1, RD 1699, C10-11 |
||
|
Safety EMC / Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
||
|
General Data
|
|||
|
Operating Temperature Range (°C)
|
-40~60℃, >45℃ derating
|
||
|
Cooling
|
Smart cooling
|
||
|
Noise (dB)
|
<30 dB
|
||
|
Communication with BMS
|
RS485; CAN
|
||
|
Size (mm)
|
420W×670H×233D
|
||
|
Weight (kg)
|
32
|
||
|
Protection Degree
|
IP65
|
||
|
Installation Style
|
Wall-mounted
|
||
|
Warranty
|
5 years
|
||
