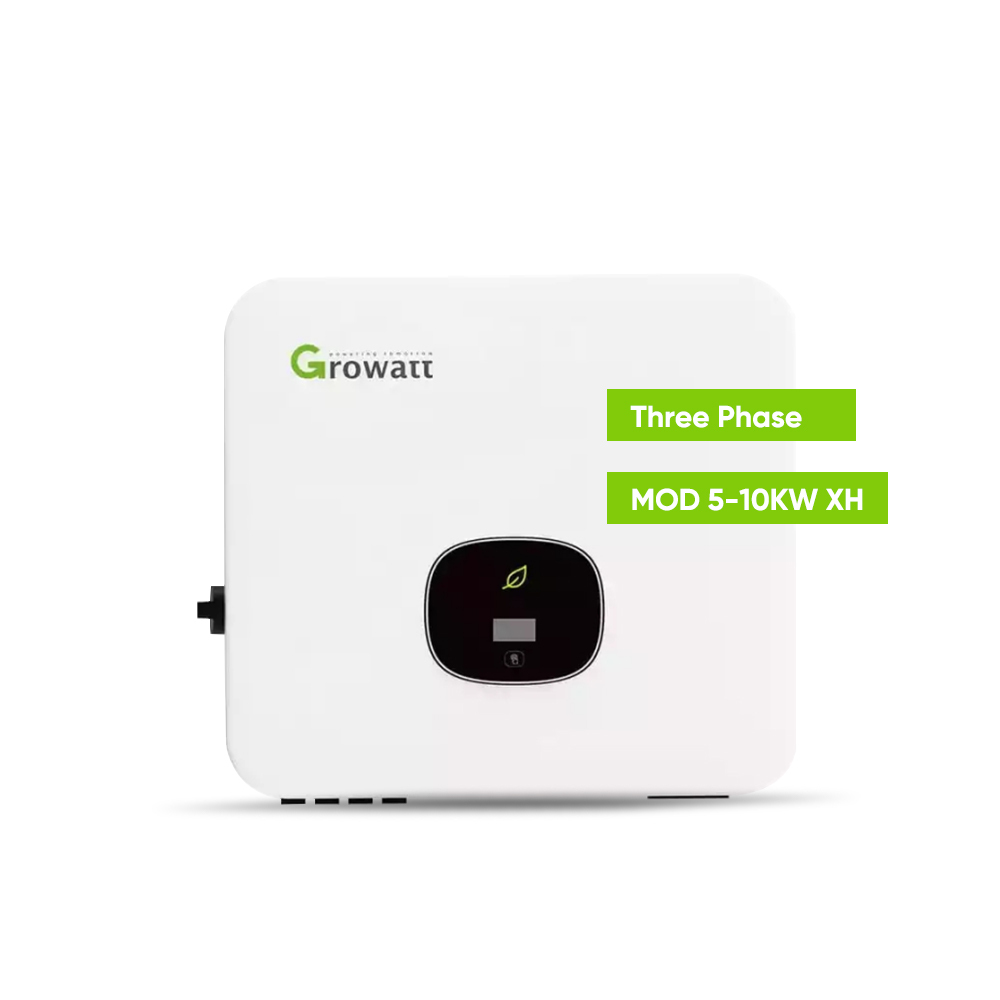

GROWATT Best Price Mod 10000Tl3-X 10 Kw MOD 10XH Solar Inverter On Grid Three-Phase Inverter 10Kw 15Kw
|
Datasheet
|
MOD 6000TL3-XH
|
MOD 8000TL3-XH
|
MOD 10000TL3-XH
|
|
Input data (DC)
|
|||
|
Max. recommended PV power (for module STC)
|
12000W
|
16000W
|
20000W
|
|
Max. DC voltage
|
1100V
|
||
|
Start voltage
|
160V
|
||
|
Nominal voltage
|
600V
|
||
|
MPPT voltage range
|
140V-1000V
|
||
|
No. of MPP trackers
|
2
|
||
|
Max. short-circuit current
per MPP tracker |
16A
|
||
|
Input data (DC battery)
|
|||
|
Compatible battery
|
ARK XH Battery System(7.68kWh-25.6kWh)
|
||
|
Operating voltage range
|
600 V-950 V
|
||
|
Max.operating current
|
11A
|
18.5A
|
18.5A
|
|
Max.charge power
|
6000W
|
10000W
|
10000W
|
|
Max.discharge power
|
6600W
|
8800W
|
11000W
|
|
Output data (AC)
|
|||
|
AC nominal power
|
6000W
|
8000W
|
10000W
|
|
Nominal AC voltage（range*）
|
220V/380V, 230V/400V (340-440V)
|
||
|
AC grid frequency（range*）
|
50/60 Hz (45-55Hz/55-65 Hz)
|
||
|
Max. output current
|
10.0A
|
13.3A
|
16.7A
|
|
AC grid connection type
|
3W+N+PE
|
||
|
Efficiency
|
|||
|
MAX. efficiency
|
98.3%
|
98.6%
|
98.6%
|
|
MPPT efficiency
|
99.9%
|
||
|
General data
|
|||
|

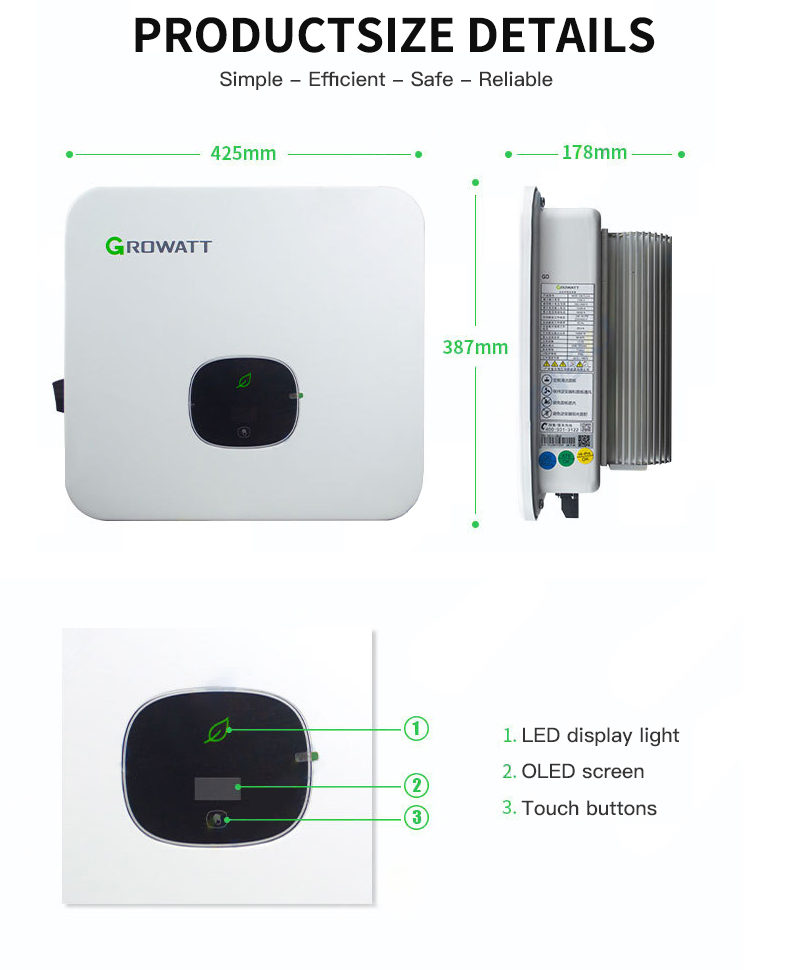

Dimensions (W / H / D)
|
425/387/147mm
|
425/387/178mm
|
425/387/178mm
|
|
Weight
|
12.5KG
|
14KG
|
14KG
|
|
DC connection
|
H4/MC4(Optional)
|
||
|
Display
|
OLED+LED/WIFI+APP
|
||
|
Warranty: 5 / 10 years
|
Yes/Optional
|
||
|
CE, VDE0126, Greece, EN50549, C10/C11, UTE C 15-712, IEC62116, IEC61727, IEC 60068, IEC 61683, CEI0-21, N4105, TOR Erzeuger G98/G99, G100, AS4777, UNE217001, UNE206007, PO12.2
|
|||
