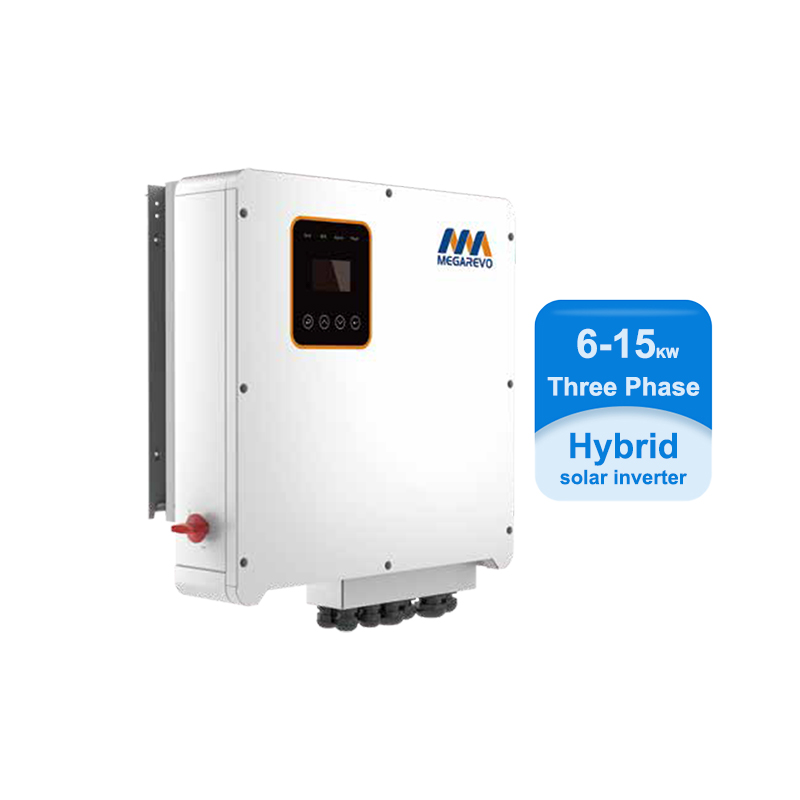

EU Standard Megarevo 3 Phase High Voltage Solar Hybrid Inverter 6kw 8kw 12kw 15kw with 2 MPPTs and Wifi
|
Model
|
R6KH3
|
R8KH3
|
R10KH3
|
R12KH3
|
R15KH3
|
|
PV string input
|
|||||
|
Max. PV voltage (V)
|
1,000
|
||||
|
MPPT voltage range (V)
|
180~850
|
||||
|
Max. short-circuit current (A)
|
16/16
|
16/16
|
16/16
|
16/16
|
25/25
|
|
No. of strings per MPPT trackers
|
1/1
|
||||
|
Rated PV input voltage (V)
|
700
|
||||
|
AC Output
|
|||||
|
Max.output current to grid (A)
|
9.5
|
12.7
|
15.9
|
19.1
|
23.8
|
|
Nominal grid voltage (V)
|
380/400，3W+N+PE
|
||||
|
Battery
|
|||||
|
Battery voltage range (V)
|
125~600
|
||||
|
Battery optimal operating voltage
range (V) |
150~550
|
||||
|
Max.charging /discharging current
(A) |
50
|
||||
|
Battery type
|
Lithium /Lead acid
|
||||
|
Communication interface
|
CAN
|
||||
|
EPS output
|
|||||
|
Max.output current (A)
|
9.5
|
12.7
|
15.9
|
19.1
|
23.8
|
|
Nominal output voltage (V)
|
400 ,3W+N+PE，50/60
|
||||
|
Max.effiffifficiency
|
97.9%
|
97.9%
|
98.2%
|
98.2%
|
97.6%
|
|
General Data
|
|||||
|
Ingress protection
|
IP65
|
||||
|
Operating altitude (m)
|
4,000 (>2,000 Derating)
|
||||
|
Dimensions W*H*D (mm)
|
530*560*220
|
||||
|
Net weight (kg)
|
30
|
31
|
32
|
33
|
34
|
|
Safety standard
|
IEC/EN62109-1:2010, IEC/EN62109-2:2011
|
||||
|
Display and communication
|
|||||
|
HMI
|
LCD; APP
|
||||
|
BMS
|
CAN
|
||||
|
EMS/Meter
|
RS485/RS485
|
||||
|
Supported communication interface
|
WIFI / GPRS
|
||||
