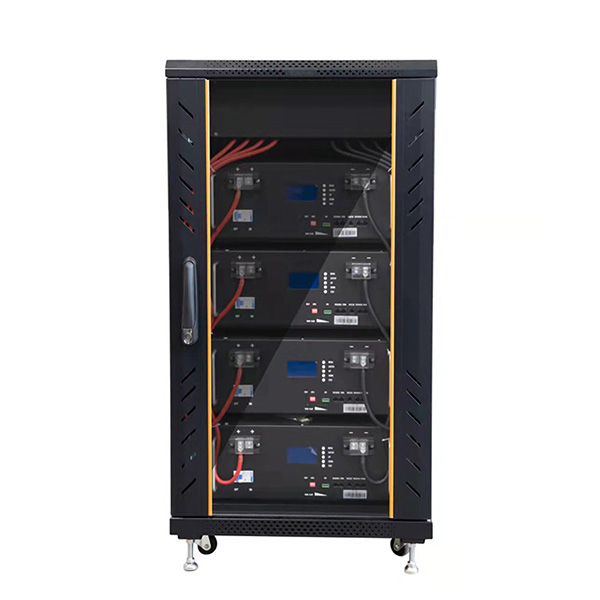

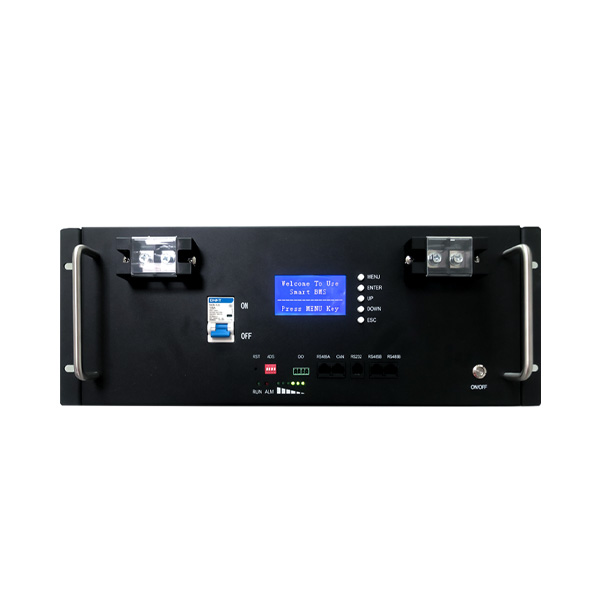

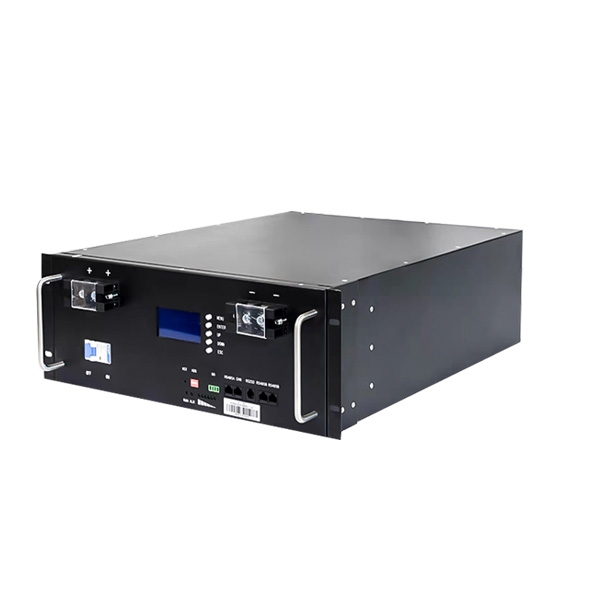

48V 51.2V 100Ah 200Ah Lithium Ion Stackable Rack Battery 5KWH 10KWH LifePO4 Solar Power Storage Battery Pack
Specification
|
Model
|
4850
|
48100
|
48150
|
48200
|
|
Nominal Voltage
|
48V/51.2V(optional)
|
|||
|
Capacity
|
50
|
100
|
150
|
200
|
|
Energy
|
2.4KWH
|
5KWH
|
7KWH
|
10KWH
|
|
Internal Resistance
|
≤60mΩ
|
|||
|
Cycle Life
|
≥5000cycles@80%DOD,25℃，0.5C
≥4000cycles@80%DOD,40℃，0.5C |
|||
|
Design Life
|
≥10 years
|
|||
|
Charge Cut-off Voltage
|
53V ±0.5V(15S);56.0V±0.5V(16S);
|
|||
|
Max. Continuous
Work Current |
50A
|
100A
|
100A/150A
|
100A/150A/200A
|
|
Discharge Cut-off Voltage
|
45V±1.0V(15S);48V±1.0V(16S);
|
|||
|
Charge Temperature
|
0℃~60℃ (Under 0℃ extra heating mechanism)
|
|||
|
Discharge Temperature
|
-20℃~60℃ (Under 0℃work with reduced capacity)
|
|||
|
Storage Temperature
|
-40℃~55℃ @ 60%±25% relative humidity
|
|||
|
Weight
|
28
|
50
|
70
|
95
|
|
Dimensions(mm)
|
520*590*180mm
520*480*220mm
|
520*500*270mm
520*500*310mm
|
520*600*270mm
520*600*310mm
|
520*730*270mm
520*730*310mm
|
|
Protocol (optional)
|
RS232-PC,RS485(B)-PC
RS485(A)-Inverter,Canbus-Inverter |
|||
|
Certification
|
UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)
|
|||
